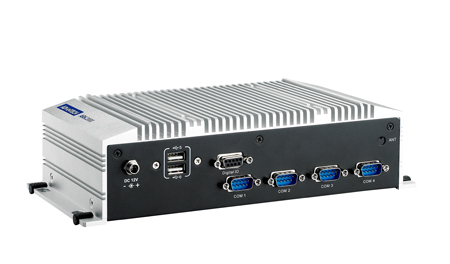

ARK-2120L ARK-2000 Series:Multiple I/O Fanless Embedded Box PCs

ARK-2120L Intel Atom N2600 1.6 GHz/D2550 1.86 GHz Fanless Embedded Box PC, DDR3 memory supports up to 4 GB VGA and HDMI dual independent display, supports DirectX 9 Mini PCIe expansion with SIM holder for communication module, i.e. HSDPA, WLAN Supports up to 2 x GbE, 6 x USB 2.0 and 4 x COMs ports Supports external CFast socket and 1 x 2.5" HDD drive bay Lockable DC input jack Supports iManager, SUSIAccess and Embedded Software APIs IP40 Letölthető adatlap

Technikai Specifikáció

ARK-2120L-S6A1E ARK-2120L-S8A1E Processor CPU Intel Atom N2600 Intel Atom D2550 CPU TDP 3.5 W 10 W Frequency 1.6 GHz 1.86 GHz Core Number 2 2 L2 Cache 1MB 1MB BIOS AMI EFI 16Mbit AMI EFI 16Mbit Chipset Intel NM10 Intel NM10 Memory Technology DDR3 800MHz DDR3 1066MHz Max. Capacity 4 GB 4 GB Socket 1 x 204-pin SODIMM 1 x 204-pin SODIMM Display Controller Intel Atom N2600 Integrated Intel Atom D2550 Integrated Graphic Engine DirectX 9 and OpenGL 3.0 support DirectX 9 and OpenGL 3.0 support VGA Up to 1920 x 1200 Up to 1920 x 1200 DDI (HDMI/DVI/DisplayPort) HDMI:1920 x 1200 @ 60Hz HDMI:1920 x 1200 @ 60Hz Multiple Display Dual Dual Expansion Mini-PCIe 1 1 SIM Socket 1 1 Ethernet Controller GbE1: Intel 82583V, support wake on LAN. GbE2: Intel 82583V, support wake on LAN. GbE1: Intel 82583V, support wake on LAN. GbE2: Intel 82583V, support wake on LAN. Speed 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps Connector RJ45 x 2 RJ45 x 2 Audio Audio Interface HD Audio HD Audio CODEC Realtek ALC892, High Definition Audio (HD) Realtek ALC892, High Definition Audio (HD) Connector 1 (Line-in, Line out, Mic-in) 1 (Line-in, Line out, Mic-in) Watchdog Timer WatchDog Timer Yes Yes Storage SATA 1 x SATA II (Max. Data Transfer Rate 300 MB/s) 1 x SATA II (Max. Data Transfer Rate 300 MB/s) CFast 1 1 I/O USB2.0 6 6 GPIO 8 8 COM Port 4 (3 x RS232, 1 x RS232/ 422/ 485) 4 (3 x RS232, 1 x RS232/ 422/ 485) Power Power Type ATX, AT ATX, AT Power Supply Voltage Vin: 12V Vin: 12V Connector Lockable DC Jack Lockable DC Jack Power Consumption (Idle) 8.76W 9.19W Power Consumption (Full Load) 13.08W 14.25W Battery Lithium 3 V / 210 mAH Lithium 3 V / 210 mAH Power Adaptor Optional Optional Environment Operational Temperature With extend temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With HDD: 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow With extend temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With HDD: 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow Non-Operational Temperature -40~ 85° C and 40° C @ 95% RH Non-Condensing -40~ 85° C and 40° C @ 95% RH Non-Condensing Vibration Resistance With SSD: 5 Grms With SSD: 5 Grms Shock Protection With SSD: 50 G With SSD: 50 G Physical Dimension (mm) 264.5 x 133.0 x 68.4 mm 264.5 x 133.0 x 68.4 mm Weight 2.3 kg (5.07 lb) 2.3 kg (5.07 lb) Construction Aluminum/Iron Aluminum/Iron Mounting Desk/ Wall/ VESA/ DIN-Rail mounting Desk/ Wall/ VESA/ DIN-Rail mounting Operating System Microsoft Windows Yes Yes Linux Yes Yes SUSIAccess Yes Yes iManager Yes Yes Certification EMC CE, FCC, CCC, BSMI CE, FCC, CCC, BSMI Safety Certifications UL, CCC, BSMI UL, CCC, BSMI
